FusionCoil Silhouette™

FusionCoil Silhouette™

A slender profile. Single and spaced options.

Gold coils with titanium alloy cores, with spaced and single-marker options delivered through a 20-gauge needle.

FusionCoil Silhouette™

Gold + titanium

20-gauge delivery

0.6 × 5 mm markers

Gold and titanium. Working together.

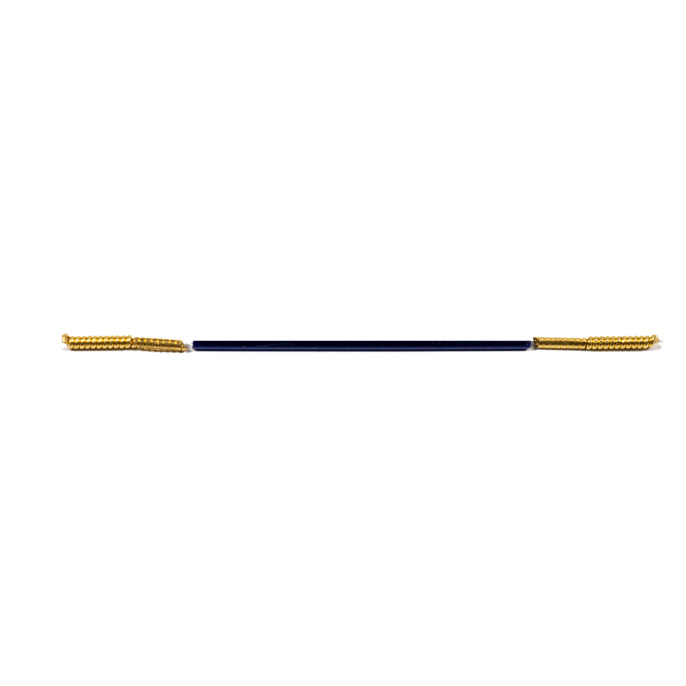

FusionCoil Silhouette combines a helical gold coil with a titanium alloy core. In the spaced configuration, two 0.6 × 5 mm markers are separated by a 15 mm bioabsorbable spacer and delivered through one 20-gauge needle.

Product codes & delivery options

Marker & needle options.

FusionCoil Silhouette™ Options

Product codeDescription
FC-102-NB-S15-20-20(1) FusionCoil Silhouette 0.6mm x 5.0mm – 2 Node, 15 MM Bioabsorbable Spacer in a 20GA-20cm long needle, 20mm center-to-center spacing
FC-0.6-5-20-20(1) FusionCoil Silhouette 0.6mm x 5.0mm – 1 Node, in a 20GA-20cm long needle
FC-102-NB-S15-20-20-3KITThree 0.6 × 5.0 mm markers in two 20GA × 20cm needles: one single-marker needle and one needle containing two markers with a 15mm bioabsorbable spacer (20mm center-to-center).
