FlexiMarc G/T™

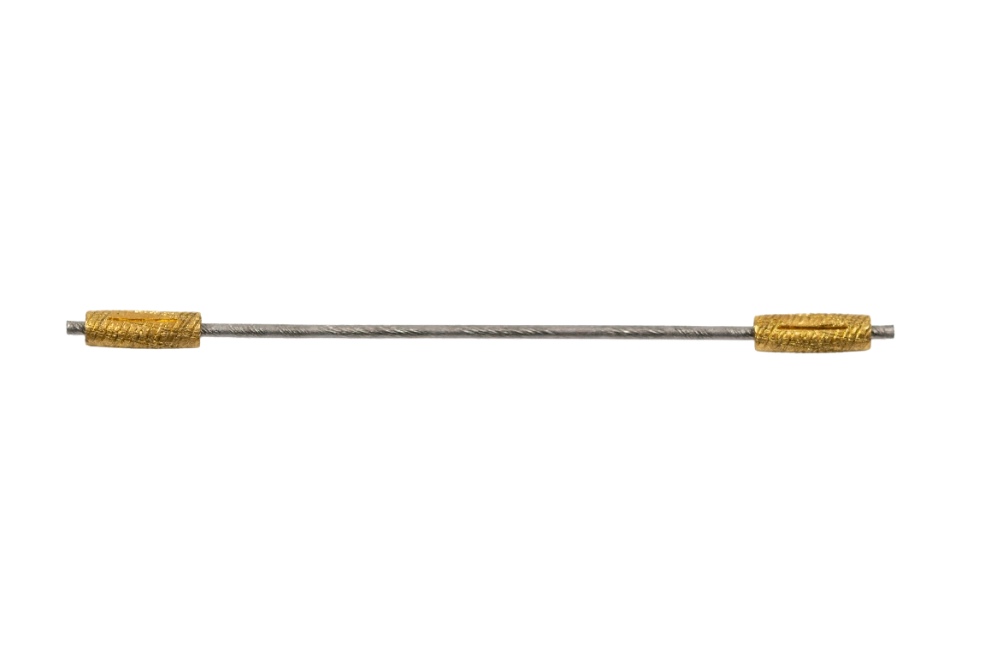

The FlexiMarc G/T™ combines two 1.0 mm x 3 mm knurled gold nodes separated by a thin, medical-grade titanium connector. Because of titanium’s low density and high magnetic susceptibility relative to gold, the titanium connector is easily visible in MRI while the marker images as two distinct points in kV, CBCT and CT with only one needle insertion. This patented design yields a unique marker that is visible in all pertinent imaging modalities while also trackable in CyberKnife’s Synchrony and Varian’s auto beam hold “ABH” algorithm. The barbell design of the marker also naturally inhibits migration.

Key Benefits

Easily visible in MRI due to the high magnetic susceptibility of titanium
Inherently stable barbell design
Clearly visible in kV, MV, CBCT, CT, MRI, and ultrasound
1 or 2 cm titanium connector supports consistent marker spacing and inhibits marker occlusion and migration
Easily trackable by Accuray Synchrony and Varian ABH

Ordering Information

FM-1.0-2-20-GT-18-20	(1) FlexiMarc G/T™ 1.0 mm diameter, 2 node, 20 mm center-to-center spacing, gold-on-titanium marker pre-loaded in a sterile 18 gauge by 20 cm long needle
FM-1.0-2-10-GT-18-20	(1) FlexiMarc G/T™ 1.0 mm diameter, 2 node, 10 mm center-to-center spacing, gold on titanium, marker preloaded in a sterile 18 gauge by 20 cm long needle
